# Elixir Flavoured Erlang

Erlang User Group Meetup

Mariano Guerra [@warianoguerra](https://twitter.com/warianoguerra)

<p style="font-size:0.5em">By day I make programming languages that don't look like programming languages at [instadeq.com](https://instadeq.com/)<p>

---

[@steveklabnik](https://twitter.com/steveklabnik/status/943208854141243398)

```
you: *sobbing* please stop...
     you cant just say everything is a compiler!

me: *points at documentation tooling* compiler
```

---

[@SeaRyanC](https://twitter.com/SeaRyanC/status/1334233376509763585)

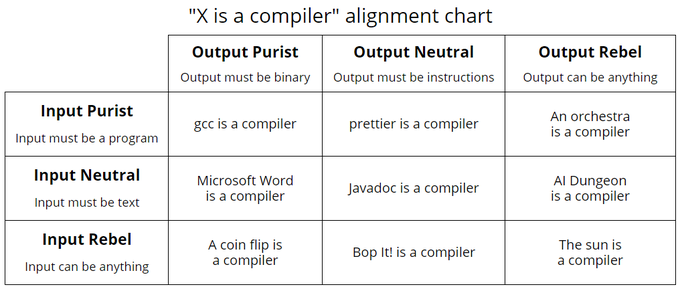

!["X is a compiler" alignment chart](img/compiler-chart.png)

---

![Citation Needed](img/citationneeded.png)

---

# The Sun is a Compiler

* A compiler is something that **takes a representation as input**

* potentially the output of a previous transformation

* and **transforms it into another representation as output**

* the output representation is more suitable for some operations this compiler cares about

---

# 🍅 Compilers 🍅 Transpilers

Usually if the output representation is closer to the computer it's called compiler

If it goes sideways it's called transpiler

If it goes in reverse it's called a decompiler (or pretty printer)

---

# Elixir Flavoured Erlang

Kind of sideways, a little upwards

---

# Elixir Flavoured Erlang

Sideways: Transpiles Erlang to Elixir

Upwards: Elixir is a Superset of Erlang

[github.com/marianoguerra/efe](https://github.com/marianoguerra/efe)

[github.com/marianoguerra/otp.ex](https://github.com/marianoguerra/otp.ex)

[Blog Post](http://marianoguerra.org/posts/elixir-flavoured-erlang-an-erlang-to-elixir-transpiler/)

---

# Elixir is a Superset of Erlang

* Rebind Variables

+ ^ Match Operator

* Nested Modules

* Structs

* Protocols

* Macros

---

# Erlang is a Superset of Elixir

* Named Lambda Functions

* Expressions in Bitstrings

* Comprehensions without Generators

* Scoping

---

# Erlang is a Superset of Elixir

* Binary Operators

* Non Short Circuit Boolean Operators

* Constant Expressions in Match Position

* Catch Expression

---

# Erlang Flavoured Elixir

```elixir
for f <- :filelib.wildcard('./_build/dev/lib/*/*/*.beam') do
  result = :beam_lib.chunks(f,[:abstract_code])
  {:ok,{_,[{:abstract_code,{_,ac}}]}} = result
  code = :erl_prettypr.format(:erl_syntax.form_list(ac))
  out_path = :string.replace(f, '.beam', '.erl')
  :file.write_file(out_path, code)
end
```

---

# How does it work: Erlang Specific

* Lexer (Text 👉🏾 Token Stream)

* Pre Processor
  + pp: includes, macros (Tokens 👉🏾 Tokens 👉🏾 AST)
  + exp: expands records to tuples (AST 👉🏾 AST)

---

# How does it work: Shared

* Parser (AST/absform)
  + Elixir/Gleam
* Core Erlang (Tree)
  + LFE

* Kernel Erlang (Tree)
* SSA (Graph)
* Codegen (Seq 👉🏾 Bytes)

---

# And Elixir?

* Lexer
  + `foo1.ex` 👉🏾 Token Stream

* Parser
  + Tokens 👉🏾 AST ex (Macro Expasion)

* Translator
  + AST ex 👉🏾 AST erl (absform)

* 👉🏾 Enters the Erlang Compiler Stack

---

# How to see them

```
erlc +to_pp foo1.erl

erlc +to_exp foo1.erl

erlc +to_core foo1.erl

erlc +to_kernel foo1.erl

erlc +dssa foo1.erl

erlc +to_asm foo1.erl
```

---

# Input

```erlang
-module(foo1).
-export([f1/2, f2/2]).
-define(OPEN, (A,).
-define(CLOSE, B)).
-define(OP, A + B).

f1?OPEN ?CLOSE -> f2(B, A).
f2?OPEN ?CLOSE -> ?OP * 2.
```

---

# PP and Exp

```erlang
{function,8,f1,2,
    [{clause,8,
       [{var,8,'A'},{var,8,'B'}],
       [],
       [{call,8,{atom,8,f2},[{var,8,'B'},{var,8,'A'}]}]}]}.

{function,9,f2,2,
    [{clause,9,
       [{var,9,'A'},{var,9,'B'}],
       [],
       [{op,9,'+',
      {var,9,'A'},
      {op,9,'*',{var,9,'B'},{integer,9,2}}}]}]}.
```

---

# Core Erlang

```erlang
'f1'/2 = fun (_0,_1) ->
	apply 'f2'/2 (_1, _0)

'f2'/2 = fun (_0,_1) ->
	let <_2> =
	    call 'erlang':'*' (_1, 2)
	in  call 'erlang':'+' (_0, _2)

'module_info'/0 = fun () ->
	call 'erlang':'get_module_info' ('foo1')

'module_info'/1 = fun (_0) ->
	call 'erlang':'get_module_info' ('foo1', _0)
```

---

# Kernel Erlang

``` erlang
fdef 'f1'/2(_0, _1) =
  match _0,_1
    enter (local 'f2'/2)(_1, _0)
  end >> <>

fdef 'f2'/2(_0, _1) =
  match _0,_1 do
      bif (remote 'erlang':'*'/2)(_1, 2) >> <_2>
    then do
      bif (remote 'erlang':'+'/2)(_0, _2) >> <_3>
    then <<_3>>
  end >> <>

fdef 'module_info'/0() =
  match
    enter (remote 'erlang':'get_module_info'/1)('foo1')
  end >> <>

fdef 'module_info'/1(_0) =
  match _0
    enter (remote 'erlang':'get_module_info'/2)('foo1', _0)
  end >> <>
end
```

---

# SSA

```erlang
function foo1:f1(_0, _1) {
0: @ssa_ret:3 = call local literal f2/2, _1, _0
   ret @ssa_ret:3
1: @ssa_ret = call remote (literal erlang):(literal error)/1, literal badarg
   ret @ssa_ret
}
function foo1:f2(_0, _1) {
0: _2 = bif:'*' _1, literal 2
   @ssa_bool = succeeded _2
   br @ssa_bool, label 3, label 1
3: _3 = bif:'+' _0, _2
   @ssa_bool:4 = succeeded _3
   br @ssa_bool:4, label 5, label 1
5: ret _3
1: @ssa_ret = call remote (literal erlang):(literal error)/1, literal badarg
   ret @ssa_ret
}

function foo1:module_info() {
0: @ssa_ret:3 = call remote (literal erlang):(literal get_module_info)/1, literal foo1
   ret @ssa_ret:3
1: @ssa_ret = call remote (literal erlang):(literal error)/1, literal badarg
   ret @ssa_ret
}

function foo1:module_info(_0) {
0: @ssa_ret:3 = call remote (literal erlang):(literal get_module_info)/2, literal foo1, _0
   ret @ssa_ret:3
1: @ssa_ret = call remote (literal erlang):(literal error)/1, literal badarg
   ret @ssa_ret
}
```

---

# Codegen

```erlang
{function, f1, 2, 2}.
  {label,1}.
    {line,[{location,"foo1.erl",8}]}.
    {func_info,{atom,foo1},{atom,f1},2}.
  {label,2}.
    {move,{x,1},{x,2}}.
    {move,{x,0},{x,1}}.
    {move,{x,2},{x,0}}.
    {call_only,2,{f,4}}.
```

---

# Codegen

```erlang
{function, f2, 2, 4}.
  {label,3}.
    {line,[{location,"foo1.erl",9}]}.
    {func_info,{atom,foo1},{atom,f2},2}.
  {label,4}.
    {line,[{location,"foo1.erl",9}]}.
    {gc_bif,'*',{f,0},2,[{x,1},{integer,2}],{x,1}}.
    {line,[{location,"foo1.erl",9}]}.
    {gc_bif,'+',{f,0},2,[{x,0},{x,1}],{x,0}}.
    return.
```

---

Follow [@leostera](https://twitter.com/leostera)

Check [LAM](https://github.com/AbstractMachinesLab/lam) and [Caramel](https://github.com/AbstractMachinesLab/caramel)

---

A Compiler is Made of Compilers

![Recursion GIF](img/recursion.gif)

---

[nanopass](http://nanopass.org/)

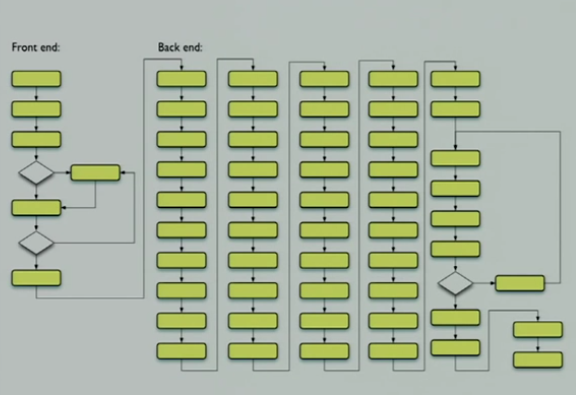

![nanopass diagram](img/nanopass.png)

???

The Nanopass Framework is an embedded domain-specific language for creating
compilers that focuses on creating small passes and many intermediate
representations. Nanopass reduces the boilerplate required to create compilers
making them easier to understand and maintain.

---

# Turbo Pascal is a Compiler

```
A one-pass compiler emits assembly right during parsing,
without creating an intermediate representation,
such as an AST
```

[One-pass Compiler Primer](https://keleshev.com/one-pass-compiler-primer)

---

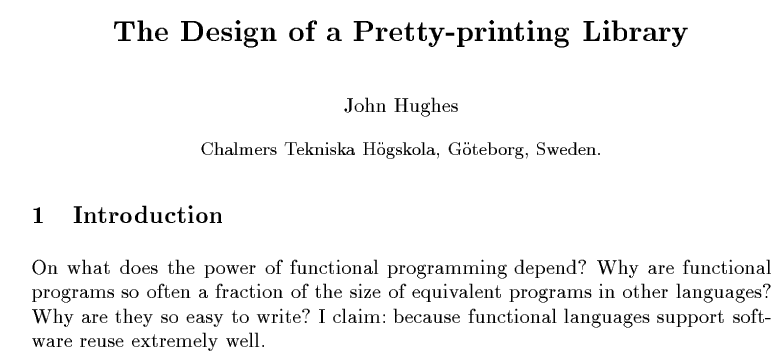

![PPrinter Paper](img/pprinter.png)

[The Design of a Pretty-printing Library](https://www.researchgate.net/publication/2819607_The_Design_of_a_Pretty-printing_Library)

---

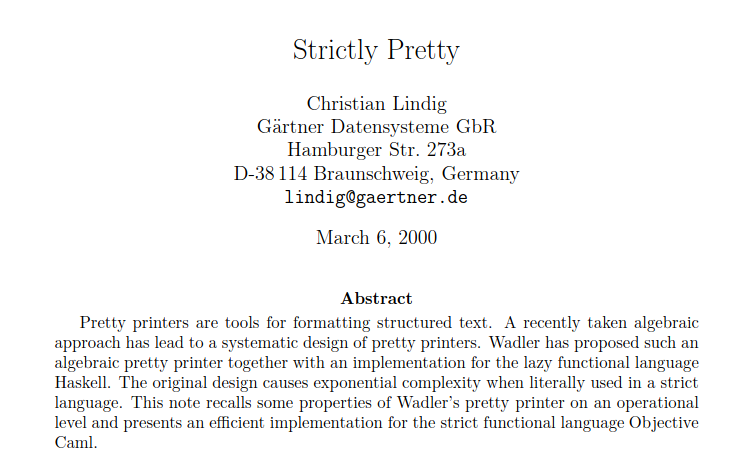

![Strictly Pretty Paper](img/strictlypretty.png)

[Strictly Pretty](https://www.researchgate.net/profile/Christian_Lindig/publication/2629249_Strictly_Pretty/links/5c2a0b8d92851c22a350bb79/Strictly-Pretty.pdf)

---

# Abstract Representation

* above
* beside
* break
* follow
* nest
* par
* sep
* text

---

# Concrete Representation

```elixir
doc = :prettypr.follow(:prettypr.text('a'),
                       :prettypr.text('b'))

👉🏾 {:beside, {:sep, [text: [1, 97], text: [0]], 0, true},
👉🏾           {:text, [1, 98]}}

paper = 80
ribbon = 56

:prettypr.format(doc, paper, ribbon)

👉🏾 'a b'
```

[prettypr.erl](http://erlang.org/doc/man/prettypr.html)

---

# The BEAM as a proto-language

A language family is a group of languages related through descent from a common
ancestral language or parental language, called the proto-language of that
family

A proto-language is a postulated language from which a number of attested known
languages are believed to have descended by evolution, forming a language
family

---

# Elixir Flavoured Erlang

Erlang User Group Meetup

Mariano Guerra [@warianoguerra](https://twitter.com/warianoguerra)

---

# A Programming Language is

An agreed unambiguous representation between humans and computers

That a human can (confortably?) express

And a computer can (efficiently?) run

---

# English is not a programming language

It can't be unambiguously compiled to a representation a computer can run

---

# Powerpoint is a programming language

[On the Turing Completeness of MS PowerPoint](https://www.andrew.cmu.edu/user/twildenh/PowerPointTM/Paper.pdf]
[Accidentally Turing-Complete](http://beza1e1.tuxen.de/articles/accidentally_turing_complete.html)

---

# Decrement and branch if nonzero is a programming language

```
A one-instruction set computer, is an abstract machine that uses only one
instruction – obviating the need for a machine language opcode.

With a judicious choice for the single instruction and given infinite
resources, an OISC is capable of being a universal computer
```

[One-instruction set computer](https://en.wikipedia.org/wiki/One-instruction_set_computer)
